Topographic Symbols of the USSR

Topographic maps are essential tools for accurately representing terrain features. In the USSR, the system of topographic symbols was carefully developed to depict everything from rivers and settlements to roads and industrial facilities. These symbols were divided into three categories: scale (contour), non-scale, and explanatory signs — ensuring clarity and precision in cartographic data.

In preparing this material, we used the official system of topographic symbols issued by the Military Topographic Directorate of the General Staff of the USSR (1966 edition). However, it is important to note that most of the symbols had remained largely unchanged since the early 1940s.

Conventional signs for maps at scales 1:25,000, 1:50,000 and 1:100,000

URBAN AREAS

Soviet Topographic Symbols: Urban Areas

📁 Cities

On Soviet topographic maps, the depiction of cities and towns was closely tied to their population size and the map’s scale. Standardized symbols allowed cartographers and military personnel to quickly assess the type and importance of each settlement.

These conventions reflected both the functional role of the settlement and its strategic relevance, especially in military and logistical planning. The visual representation did not always correspond to the exact number of buildings but was designed to indicate density and layout type.

Soviet Topographic Symbols: City

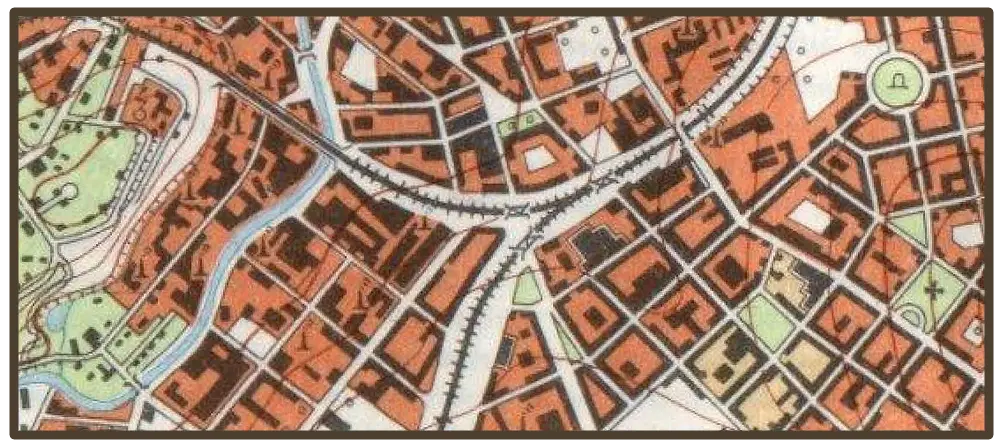

City with a population over 50,000 at a scale of 1:25 000

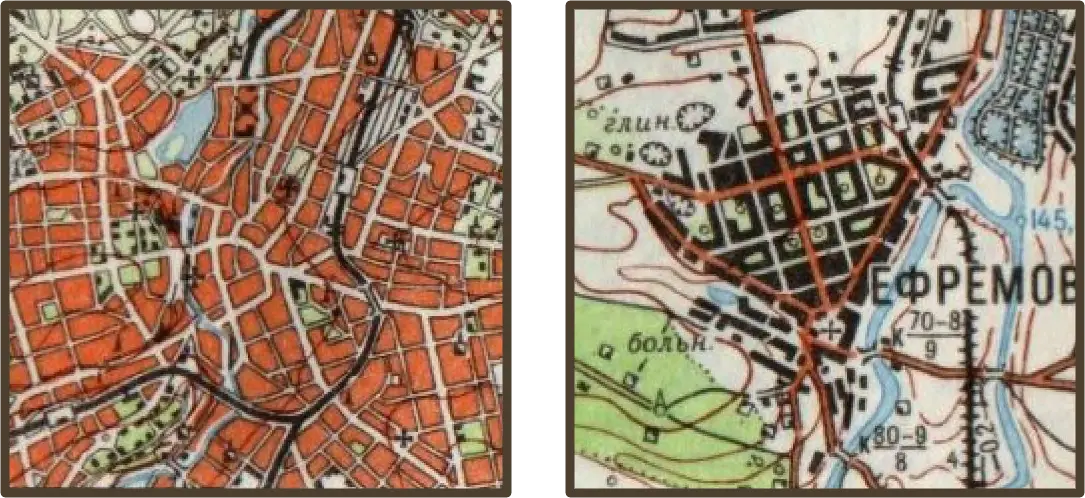

Soviet Topographic Symbols: City

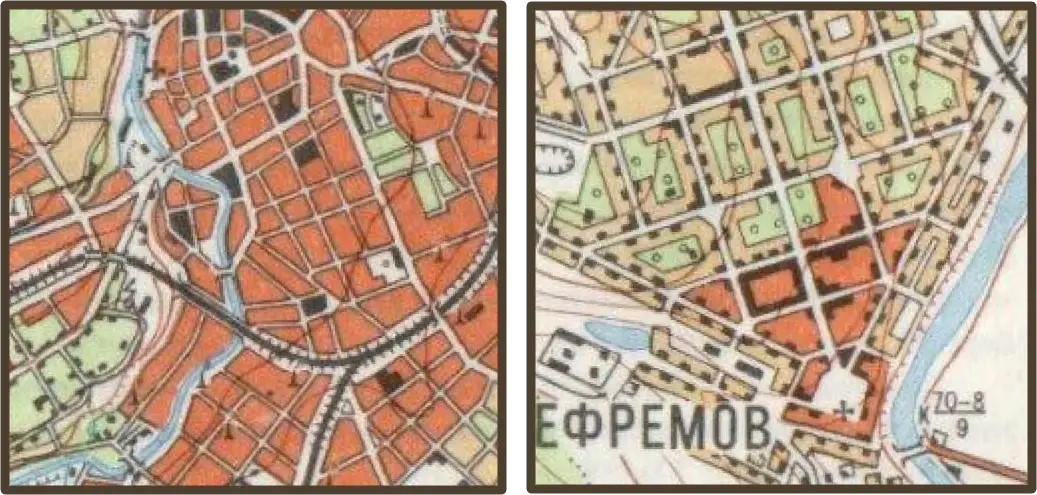

City with a population over 50,000 at a scale of 1:50 000 (left)

City with a population under 50,000 at a scale of 1:50 000 (right)

Soviet Topographic Symbols: City

City with a population over 50,000 at a scale of 1:100 000 (left)

City with a population under 50,000 at a scale of 1:100 000 (right)

Rural-type settlements

📁 Rural-type settlements

Represented on maps at scales like 1:50,000 and 1:100,000 with small clusters of buildings, often without street detail. These settlements typically lacked urban infrastructure and were marked with simplified symbols.

Rural settlements were common across the USSR and included workers’ settlements, collective farm centers (kolkhozy), and small agricultural communities. Their depiction on topographic maps emphasized their limited size and functional simplicity, often showing only key buildings or landmarks such as a school, club, or church if present.

Soviet Topographic Symbols: Village

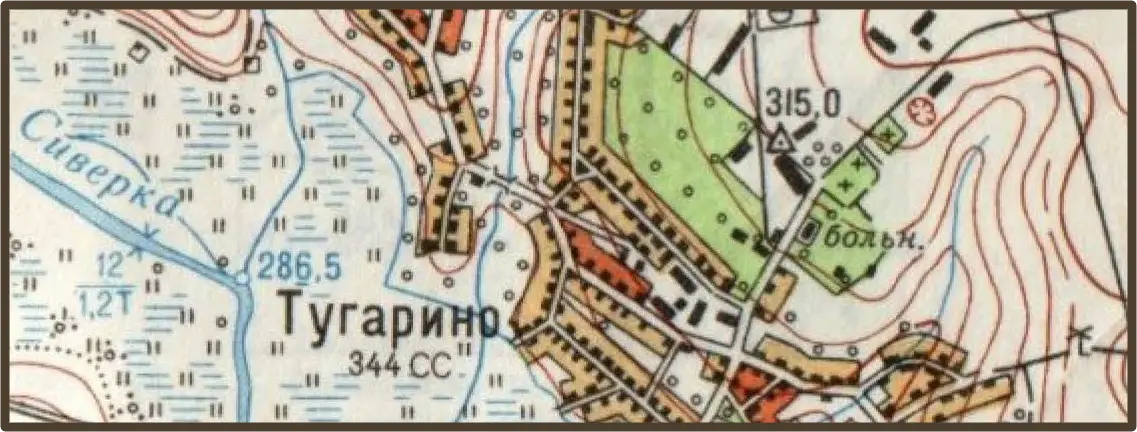

Rural-type settlement at a scale of 1:25,000

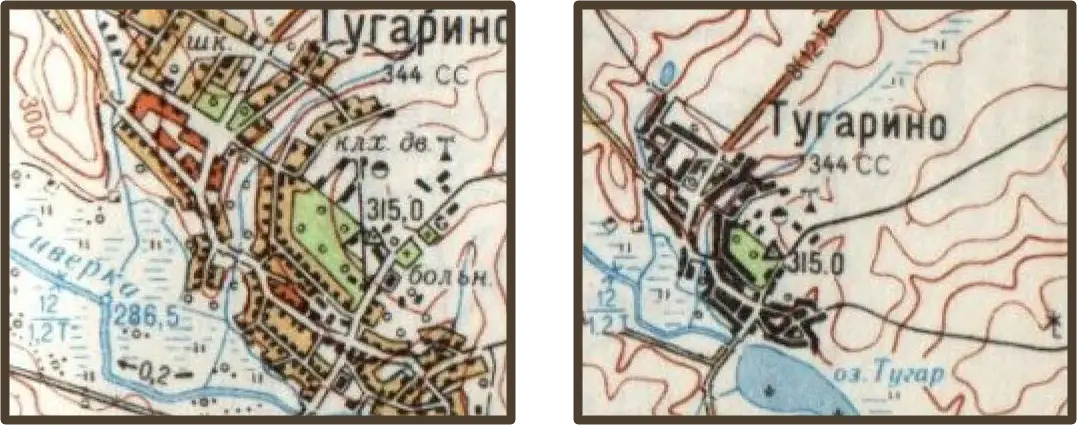

Soviet Topographic Symbols: Village

Rural-type settlement at a scale of 1:50,000 (left)

Rural-type settlement at a scale of 1:100,000  (right)

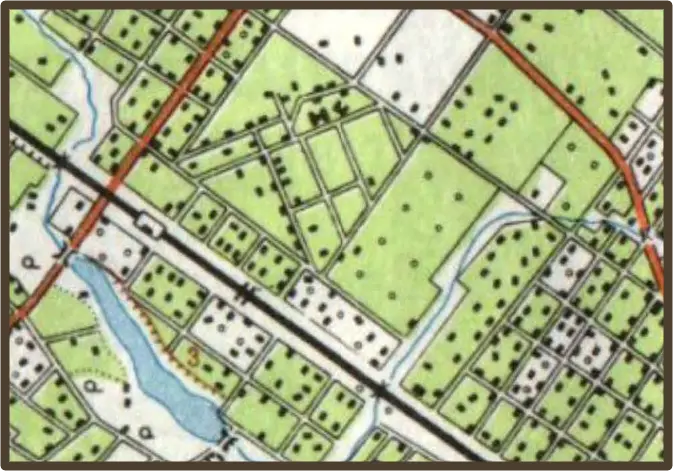

Soviet Topographic Symbols: Village

Rural or seasonal cottage settlements (known as “dachas” in Russian tradition)

Soviet Topographic Symbols: Village

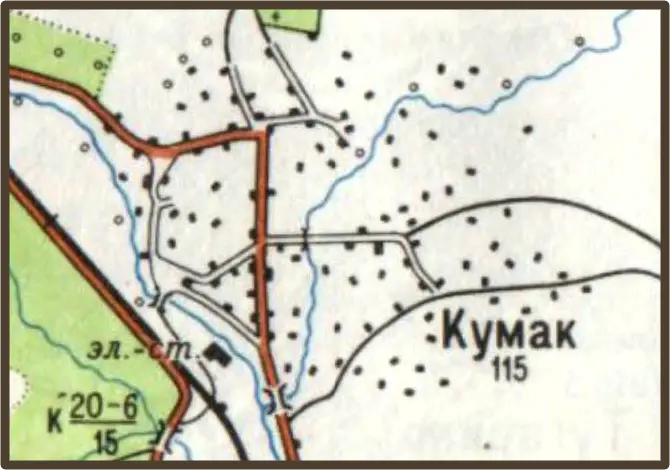

Settlements with irregular (unplanned) layout

Soviet Topographic Symbols: Village

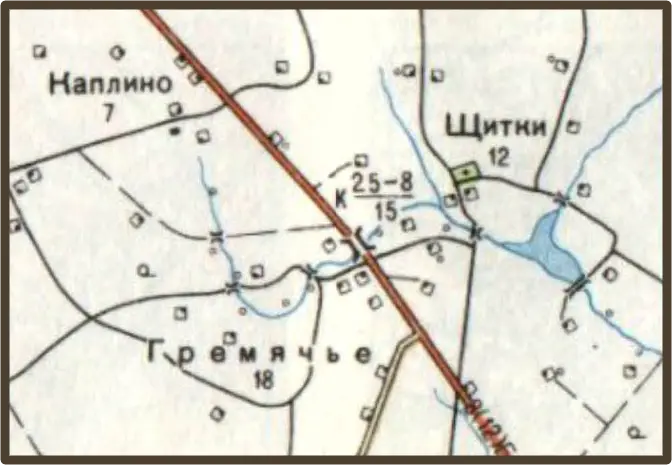

Dispersed-type settlements

📁 Depiction of Blocks and Individual Buildings

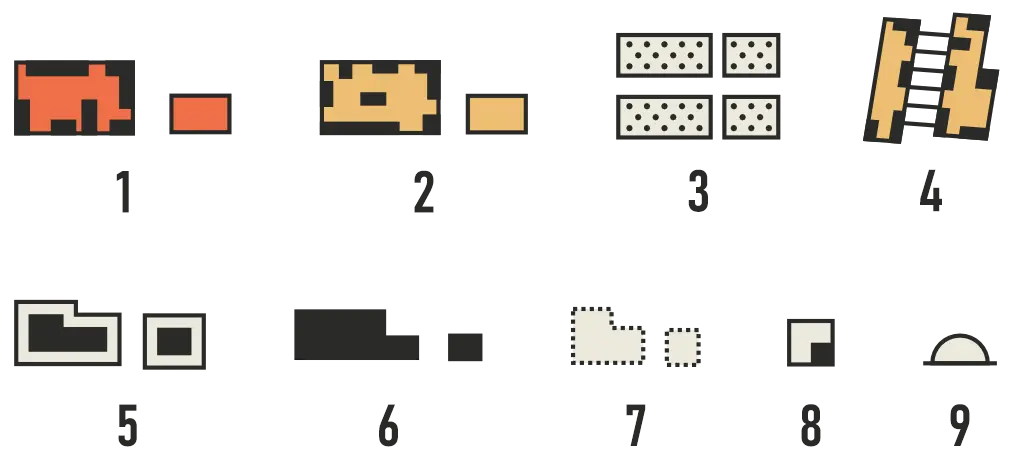

Soviet Topographic Symbols: City Blocks
  1. Blocks predominantly consisting of fire-resistant buildings.
  2. Blocks predominantly consisting of non-fire-resistant buildings.
    Note: On a 1:100,000 scale map, fire resistance is not indicated; an orange background fill on depictions of cities with a population of 50,000 or more represents densely built-up blocks.
  3. Destroyed and partially destroyed blocks.
  4. Impassable sections of streets (shown only on maps at a 1:25,000 scale).
  5. Prominent fire-resistant buildings (shown only on maps at scales 1:25,000 and 1:50,000)
    Left: Represented at map scale

    Right: Not represented at map scale
  6. Residential and non-residential buildings
    Left: Represented at map scale
    Right: Not represented at map scale
  7. Destroyed and partially destroyed buildings
    Left: Represented at map scale
    Right: Not represented at map scale
  8. Isolated farmsteads
  9. Tent and yurt encampments, etc.

Soviet Topographic Symbols: City Names

📁 Place Name Labels: Cities

  1. Moscow – Capital of the USSR, capitals of the Union republics of the USSR, and capitals of foreign countries with a population over 1,000,000. Also includes cities with a population over 1,000,000.
  2. Riga – Capitals of the Union republics of the USSR and capitals of foreign countries with a population under 1,000,000. Also includes cities with a population from 500,000 to 1,000,000.
  3. Tomsk – Capitals of Autonomous Soviet Socialist Republics (ASSR), centers of krais, oblasts, and autonomous oblasts not included in a krai. First-order administrative centers in foreign territories. Also includes cities with a population from 100,000 to 500,000.
  4. Maykop – Centers of oblasts and autonomous oblasts within a krai. Centers of national okrugs. Cities with a population from 50,000 to 100,000.
  5. Torzhok – Cities with a population from 10,000 to 50,000.
  6. Aleksin – Cities with a population from 2,000 to 10,000.
  7. Varniai – Cities with a population under 2,000.

Note: City and railway station name labels are shown for the 1:100,000 scale map. On maps at 1:25,000 and 1:50,000 scales, the same typefaces are used, but rendered in slightly larger sizes.

Soviet Topographic Symbols: City Names

📁 Urban-type settlements (workers’ settlements, resort settlements, etc.)

  1. Kodzori – 2,000 residents or more.
  2. Dubki – Fewer than 2,000 residents.

Soviet Topographic Symbols: City Names

📁 Settlements near industrial enterprises, railway stations, river ports, etc.

  1. Maisky – More than 1,000 residents.
  2. Artyomovsky – From 100 to 1,000 residents.
  3. Rudnichny – Fewer than 100 residents.

Soviet Topographic Symbols: City Names

📁 Rural or seasonal cottage settlements

  1. Labinskaya – More than 200 households.
  2. Goncharovka – From 100 to 200 households.
  3. Yuryevka – From 20 to 100 households.
  4. Lotoshino – Fewer than 20 households.
  5. Dinskaya – Individual homesteads.

Soviet Topographic Symbols: City Names

📁 Railway stations

  1. Gorbachevo – Junction and large stations.
  2. Navtlug – Stations, sidings, platforms, and stopping points.

Note: If the name of a settlement on the map is underlined, it also refers to the nearby railway station or river port.

To be continued.
In the second part of the publication, we will introduce you to the conventional symbols representing standalone items and objects.
